Ball Mill Accessories

Short Description:

H&G has a proven history of designing, manufacturing, and servicing grinding mills and components. Our extensive range of global expertise allows us to be a flexible service partner. We can fulfill standard and customized parts and component orders for: Heads, Shells, Gears and pinions, Main bearings, Trunnions, Trunnion liners And more!


Product Detail

Product Tags

H&G  grinding mill parts

H&G  has a proven history of designing, manufacturing, and servicing grinding mills and components. Our extensive range of global expertise allows us to be a flexible service partner. We can fulfill standard and customized parts and component orders for:

  • Heads
  • Shells
  • Gears and pinions
  • Main bearings
  • Trunnions
  • Trunnion liners
  • And more!
Grinding mill head

Material: cast ductile iron or cast steel
Segments: one, two, three, or four
Type: feed/discharge, fixed/floating, integral with the trunnion

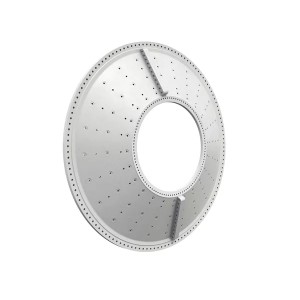

Render of Metso grinding mill head
Grinding mill shell

Material: fabricated steel (welded)
Sections: integral, two or three cans
Segments: one, two, or three-piece

Render of Metso grinding mill shell

Gears and pinions

Material: cast ductile iron, cast steel, fabricated steel
Section structure: T or Y design
Segments: two-piece or four-piece gears
Upgrade options: drop-in pinion assembly, gear guard and components, gear spray infrared monitoring system

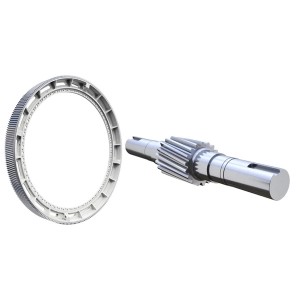

Render of Metso grinding mill gear and pinion
Grinding mill main bearings

Material: fabricated steel (welded)
Type: hydrostatic or hydrodynamic (sleeve/pad), fixed or floating
Upgrade options: bearing insert (bronze, babbitt), seals, temperature monitoring systems, lubrication unit

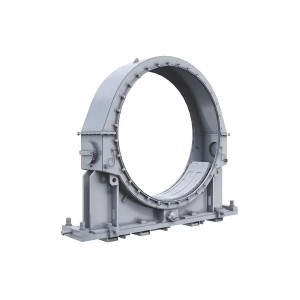

Render of Metso grinding mill main bearing

Grinding mill trunnions

Material: cast ductile iron
Type: feed or discharge, fixed or floating

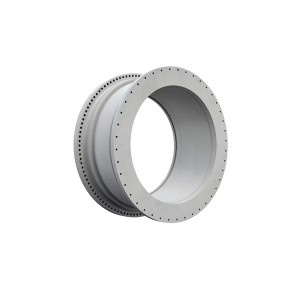

Render of Metso grinding mill trunnion
Grinding mill trunnion liners

Material: cast iron or fabricated steel
Wear material: vulcanized rubber lined or lifter and plate style replaceable bolt in
Type: feed or discharge

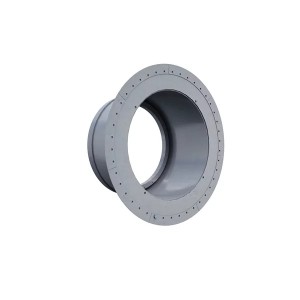

Render of Metso grinding mill trunnion liner

Ball Mill Frame Map
